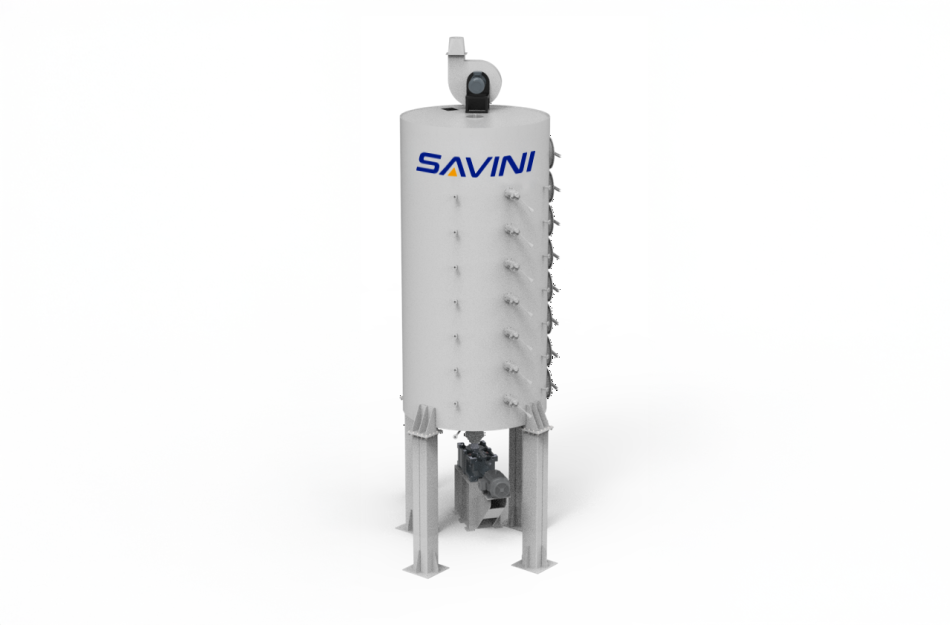

ISAV-4500 Vertical Cooker
Designed for high-capacity processing plants, the ISAV-4500 Vertical Cooker provides comprehensive seed conditioning through precise temperature and moisture control. Its system optimizes the raw material structure to maximize efficiency in subsequent pressing or direct extraction processes.
Process Objectives
- Structurally condition the seed to achieve optimum plasticity.
- Reduce oil viscosity to facilitate oil release.
- Promote controlled protein coagulation.
- Thermally sterilize the seeds and eliminate undesirable contaminants.
Key Features
- Efficient indirect heating: Steam-based heat transfer operating at 6–8 bar.
- Operational flexibility: Adjustable heating from 90–110°C for pressing applications and 65–72°C for direct extraction processes.
- Material flow control: Mechanical floor-to-floor transfer system with external adjustment.
- Hygienic and durable design: Vapor extraction system manufactured entirely from stainless steel.
- Easy maintenance: Individual manway access on each level for convenient inspection.
- Heavy-duty construction: Equipped with a robust thrust bearing assembly designed to withstand the high axial loads of the vertical shaft, with stirring paddles installed on every level.
Technical Specifications
Parameter Specification
Number of levels 9
Motor power 1 × 132 kW
Sunflower processing capacity 600 t/day
Dehulled sunflower processing capacity 700 t/day
Total equipment weight 60,000 kg
Dimension A 4,500 mm
Dimension B 7,200 mm
Dimension C 11,100 mm
ISAV-3200 Vertical Cooker
The ISAV-3200 Vertical Cooker delivers reliable thermal and moisture conditioning for medium-capacity production lines. It prepares seeds uniformly, ensuring reduced oil viscosity and optimal seed plasticity for pressing or solvent extraction operations.
Process Objectives
- Improve seed plasticity to enhance mechanical extraction performance.
- Reduce oil viscosity for efficient drainage.
- Promote protein coagulation.
- Ensure thermal sterilization and removal of undesirable contaminants.
Key Features
- Indirect steam heating: Operating pressure of 6–8 bar.
- Adaptable temperature ranges: 90–110°C for pressing applications and 65–72°C for direct extraction.
- Adjustable operation: Mechanical inter-level transfer system with external regulation.
- Corrosion-resistant components: Stainless steel vapor extraction and aspiration system.
- Easy accessibility: Individual manway on each level for inspection and maintenance.
- Robust design: Vertical shaft fitted with stirring paddles on every level and supported by a heavy-duty industrial thrust bearing assembly.
Technical Specifications
Parameter Specification
Number of levels 8
Motor power 1 × 55 kW
Sunflower processing capacity 300 t/day
Dehulled sunflower processing capacity 350 t/day
Total equipment weight 30,000 kg
Dimension A 3,200 mm
Dimension B 6,600 mm
Dimension C 9,600 mm
