ISAV 50 Press

ISAV 50 Press

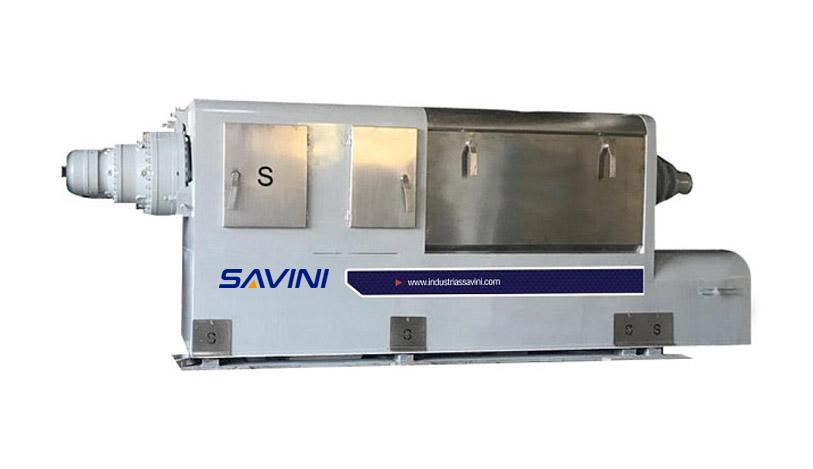

The ISAV 50 Press is designed for efficient mechanical oil extraction from extruded oilseeds, delivering high throughput and consistent performance while producing expeller with low residual oil content.

Technical Specifications

Processing Capacity: 2 metric tons per hour

Residual Oil Content: Below 7% (measured as ether extract)

Feed Material Requirements

The press is designed to process extruded grains with the following characteristics:

Particle Size at Feeder Inlet: Less than 1 mm

Moisture Content: 5.0–5.5%

Material Temperature: Minimum 95°C

Installed Power

75 HP

Approximate Dimensions

Length: 5,250 mm

Width: 1,560 mm

Height: 1,575 mm

Approximate Weight

9 metric tons
