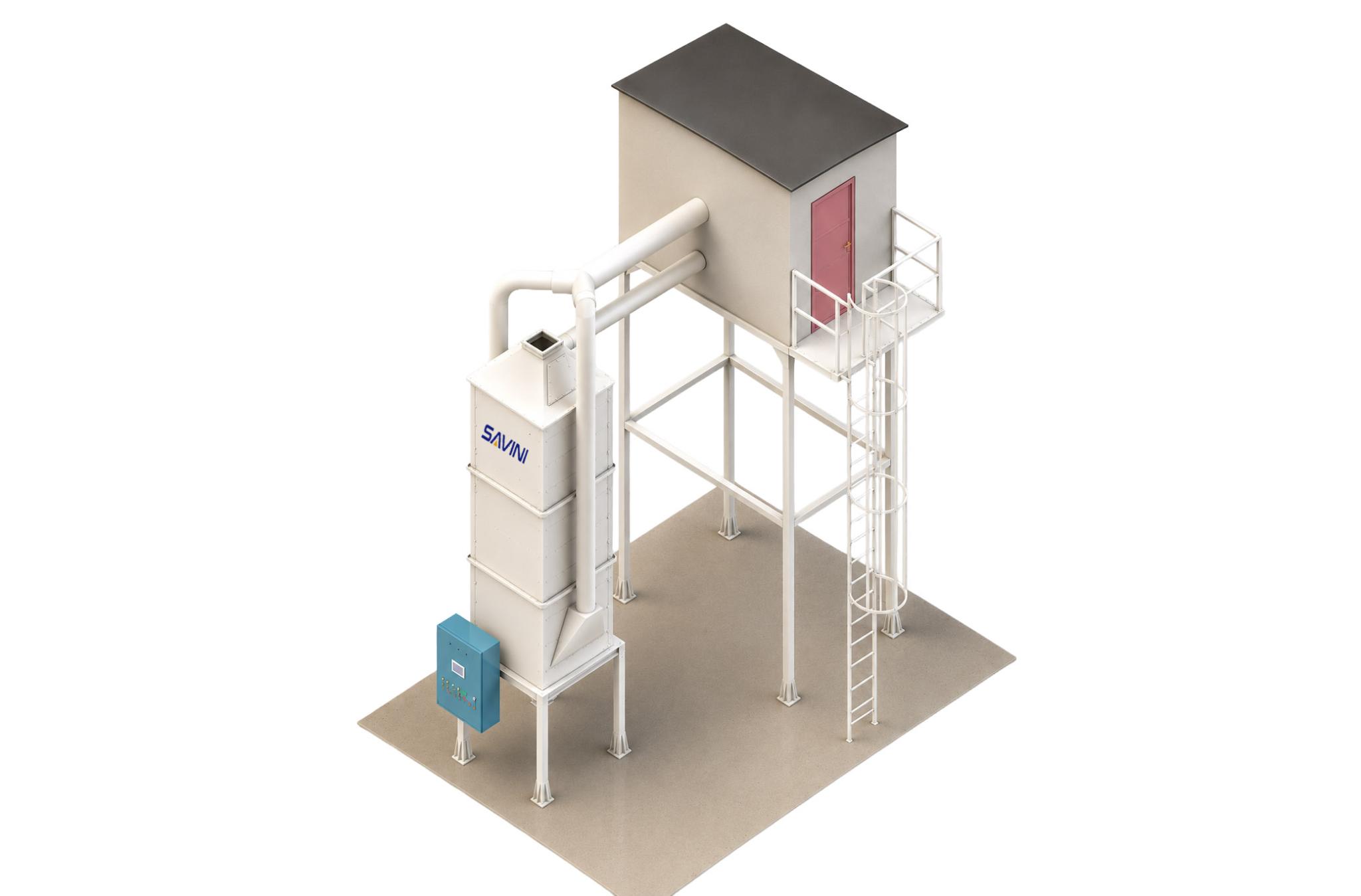

Vertical Grain Conditioner
The Vertical Grain Conditioner automatically optimizes the critical properties of raw material before it enters the extrusion process. By equalizing moisture content and increasing grain temperature, it significantly reduces the mechanical load on the extruder, resulting in more efficient operation and a higher-quality final product.
Process Objectives
Moisture Optimization: Reduces and equalizes harvest moisture to safe levels for subsequent oil extraction.
Thermal Conditioning: Raises grain temperature to minimize stress and wear on the extruder.
Production Line Optimization: Reduces maintenance requirements, lowers power consumption, and increases actual processing capacity.
Enhanced Product Quality: Improves both oil yield and the quality of the resulting expeller meal.
Key Benefits
Automatic Thermal Control: Maintains a stable grain inlet temperature between 70°C and 80°C without manual intervention.
Moisture Control: Ensures feed material moisture remains below 10%, while also enabling the processing of freshly harvested soybeans with moisture levels as high as 15–16%.
Process Standardization: Provides uniform feed conditions for the extrusion stage, improving process consistency.
Increased Throughput: Boosts extruder productivity by more than 50%.
Energy Efficiency: Reduces electrical power consumption of the extrusion line by approximately 30%.
Lower Operating Costs: Significantly decreases maintenance expenses and extends the service life of critical extruder components.
Higher-Value Expeller: Improves the nutritional quality of the expeller by increasing protein content and reducing residual oil levels.
Technical Specifications (Installed Power)
Hot Air Injection Blower: 15 hp, 2,800 rpm
Exhaust Blower: 3 hp, 2,800 rpm
